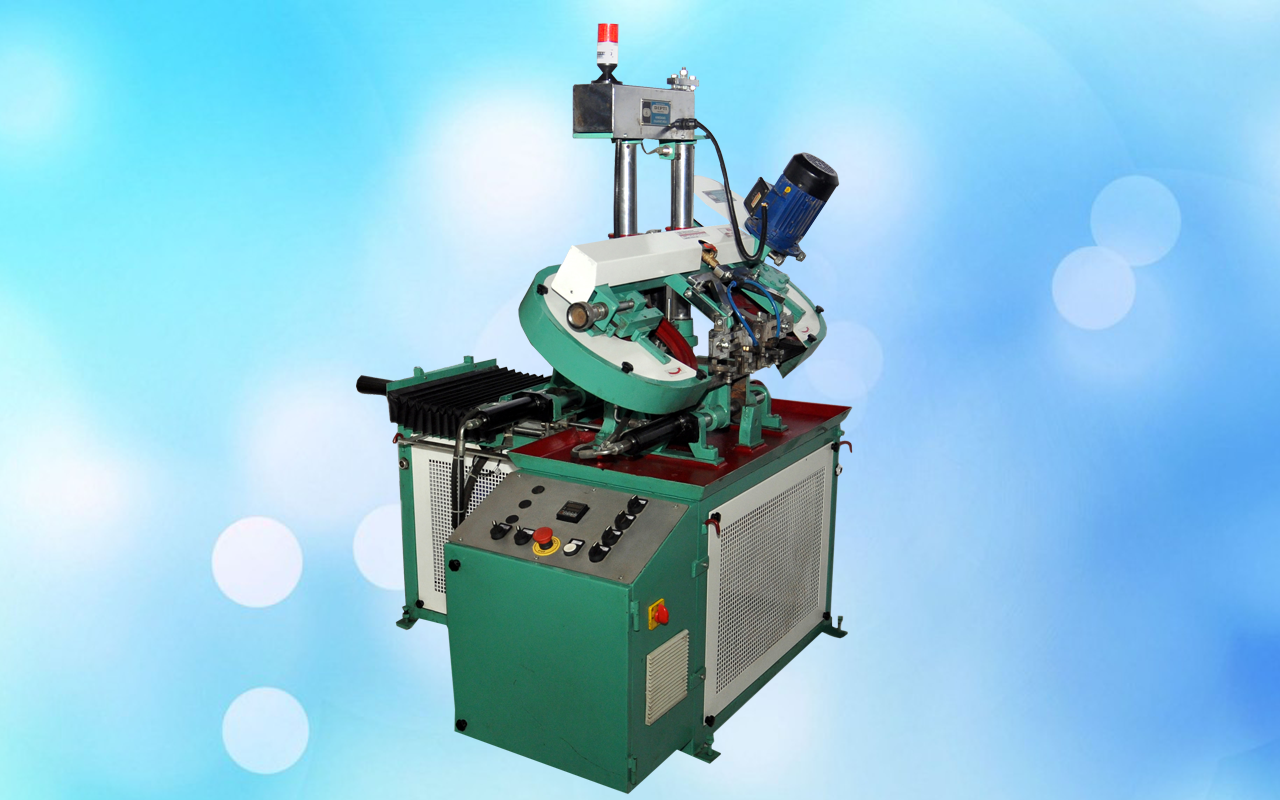

Semi Hydraulics Bandsaw Machine ( DI-175 Fully Automatic )

Semi Hydraulics Bandsaw Machine ( DI-175 Fully Automatic )


Special Features

  • Cuts Round Bars, Square, Flats, Pipes, Angles, Channels.
  • Cuts various types of materials like Mild Steel, Alloy Steel, Stainless Steel, Brass, Copper, Alluminium, etc.
  • Efficient Clamping Vice.
  • Precise & Easy Feed Control.
  • Fast & Smooth Cutting.
  • Bi-Metal Cutting Blade has Optimum Working Capacity.
  • Each & every part of the machine is easily reparable & replaceable.
Technical Specification
Model DI-175-Fully Automatic
Cutting Capacity Round Bar (mm) 130
Square Bunch Cutting (mm) 125 x 125
Flats (Lamb chores) 125 x 175
Blade Size (mm) 27 x 0.9 x 2515
Motor Power 1 HP / 1440 RPM
Coolant Pump Power 0.15 HP / 2800 RPM
Blade Speed Min/Mtr 32 / 42
Net Weight 335 Kg.
Overall Dimension 1250 x 1500 x 1600
    L         W       H
